GP8000 - Concrete GPR

Proceq GPR Live Video

Compact and Wireless

The GP8000 concrete scanner probe is built into a lightweight and robust housing which is easily manoeuvrable. The GPR probe operates with standard chargeable AA batteries to guarantee easy battery replacements.

The GPR concrete scanner probe connects wirelessly to an Apple iPad (touchscreen up to 12.9¹ with iPad Pro) utilising the Proceq GPR Live web tool to enable real-time data analysis and sharing. The iPad application also enables the constant development of new features with the Proceq GPR Pro Live.

There are several handling configurations including mounting the iPad directly to the concrete scanner probe, using a telescoping rod or mounting the iPad on a tripod. The probe is completely independent and has a wireless range of up to 20m.

Note: Apple iPad is not included with purchase of the Proceq GPR.

Real Time Data Collection Options

Ground Penetrating Radar data is collected in real-time and the user can switch seamlessly between standard non-migrated scan to the intuitive migrated "Heatmap"¹. It is possible to label the scan with the type of target, depth and location which leads to seamless reporting. The Proceq GPR concrete scanner has been built with the intention of enabling all reporting to be completed on-site to reduce time consuming post-processing.

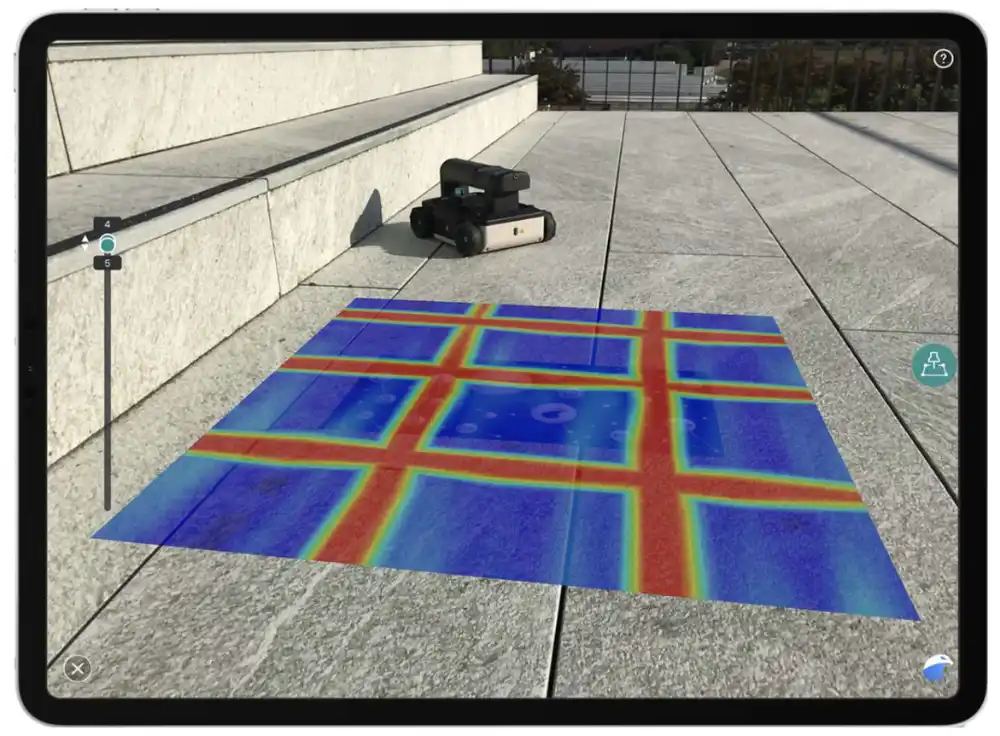

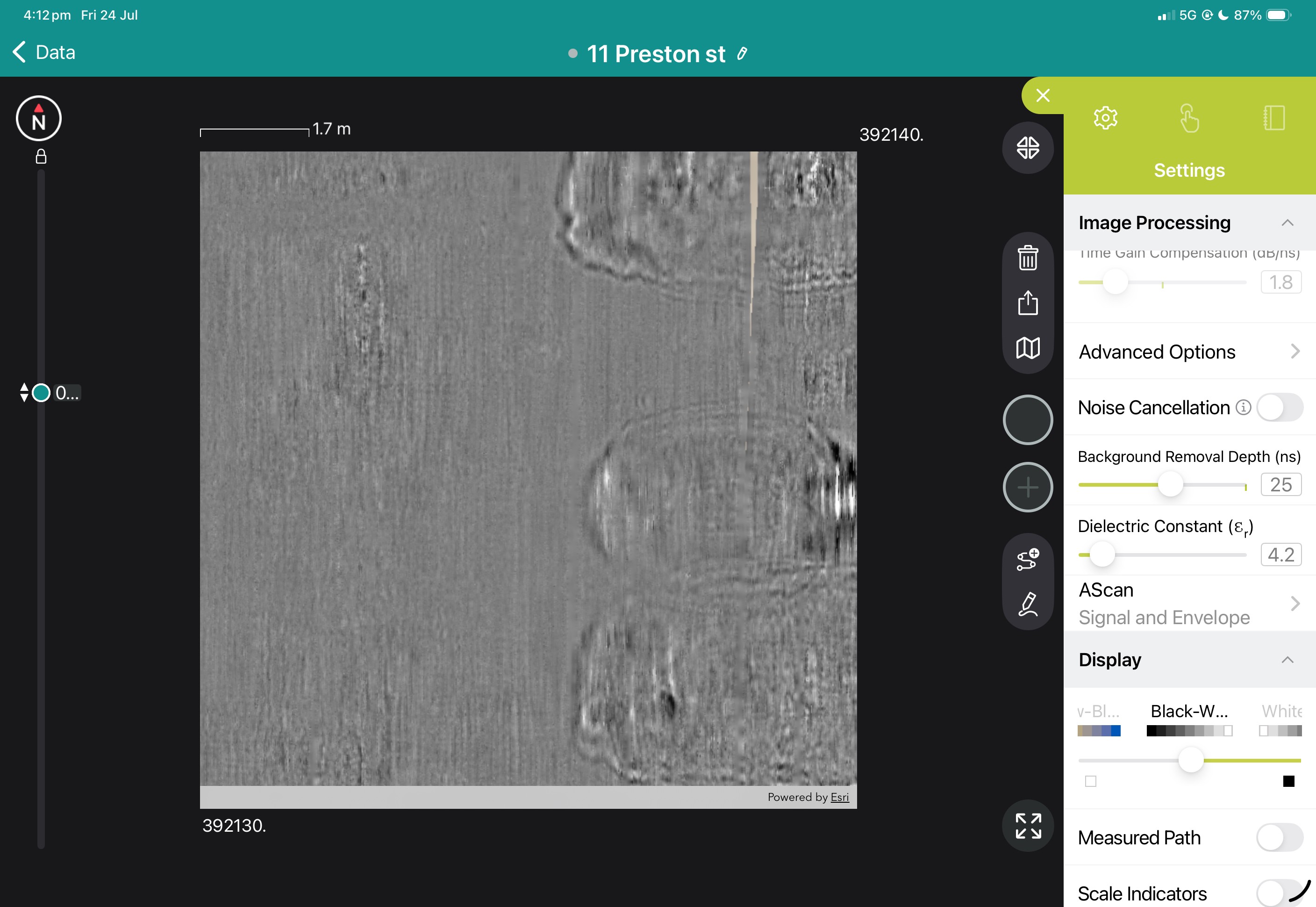

For reporting purposes, it is also possible to view data as a depthslice / timeslice view or with an on-site 3D view.

Pioneering Ultra-wideband

The Proceq GPR concrete scanner utilises ultra-wideband technology which enables high resolution scanning to a maximum depth of 700mm. All applications typically addressed with multiple antennas can now be covered with one single device with a frequency range of 0.2 to 4.0 GHz.

Data Sharing and Logbook

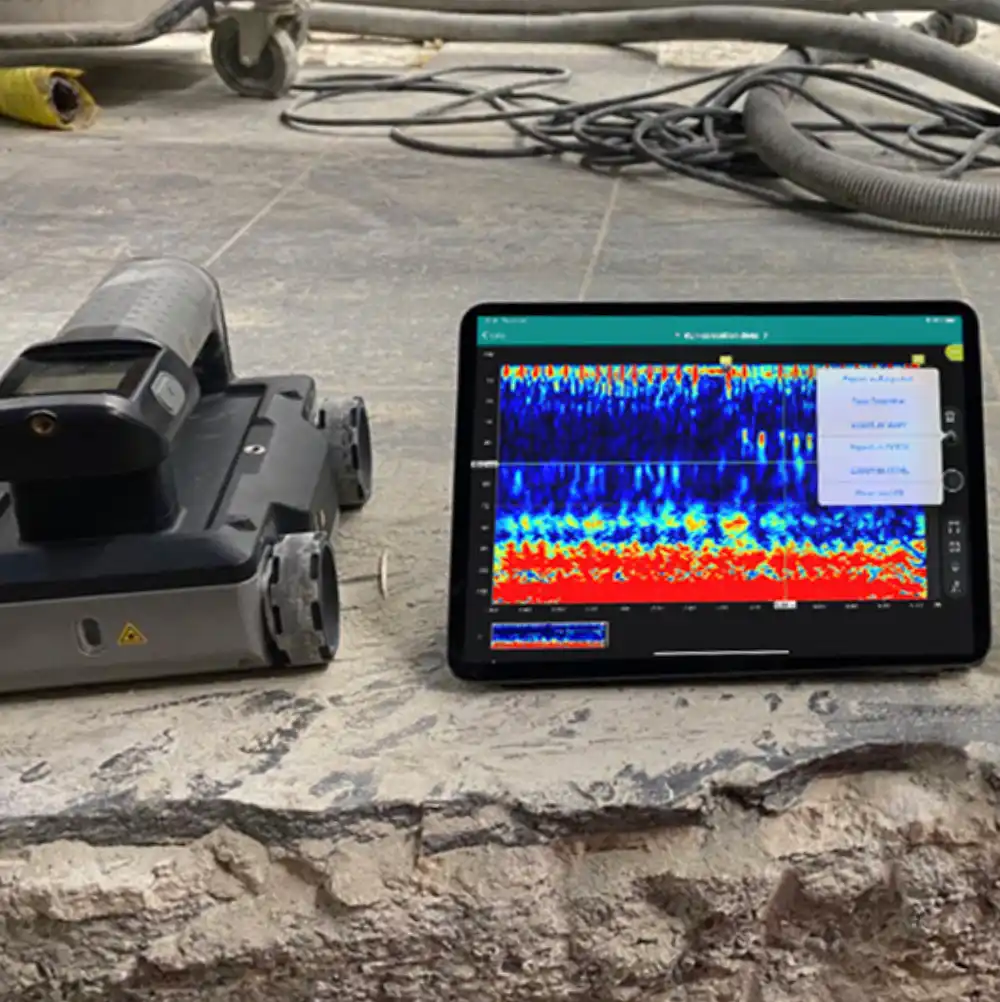

The Proceq GPR concrete scanner connects wirelessly to the Apple iPad and all GPR scans show up in real time on the Proceq GPR Live Application.

GPR scans are saved within the Proceq GPR Application on the Apple iPad. For Proceq GPR Live Pro users, all data is saved on the cloud and linked to their user account. This enables post processing and review of data from any Apple iPad the user signs into.

The Proceq GPR Pro Live comes with Logbook which is a Professional tool for tracking all steps in the image processing. All gain and filter settings used are logged and included along with the scan. Measurements and changes are also tracked.

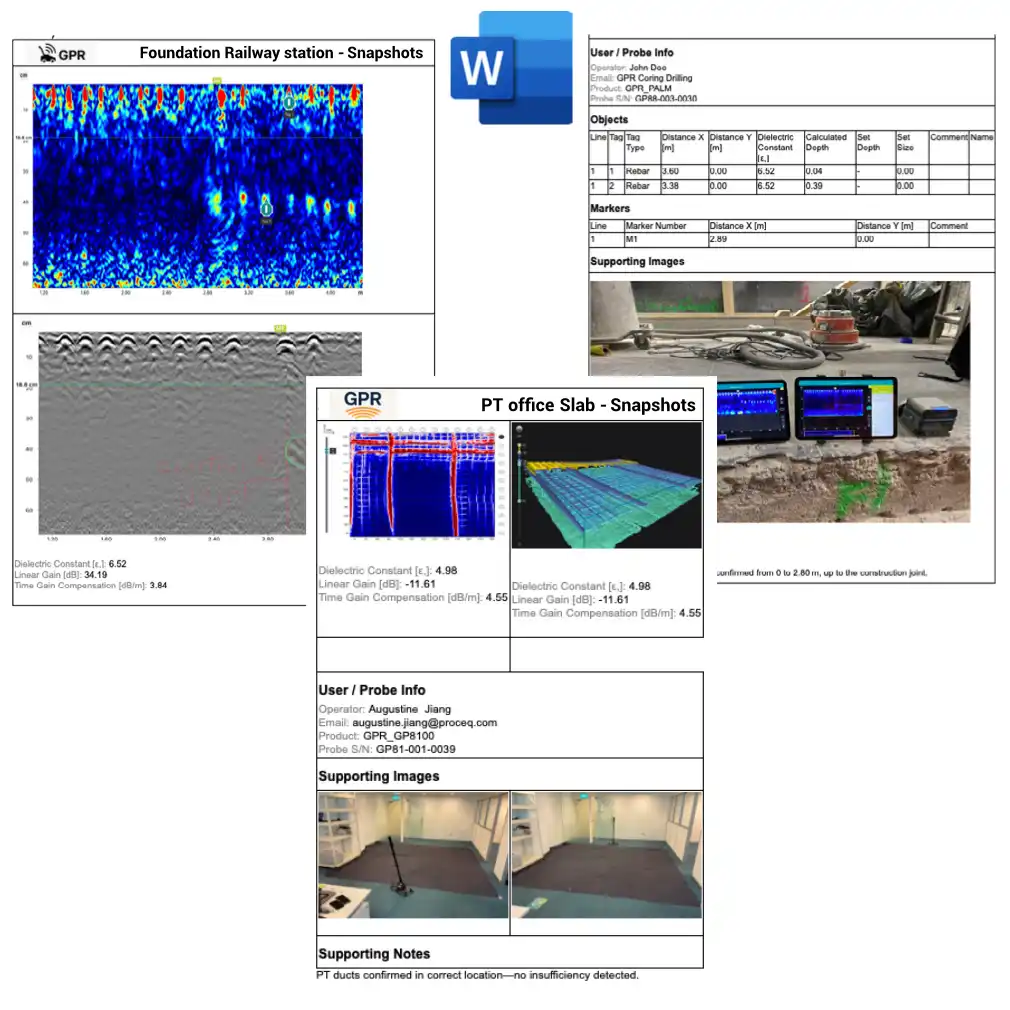

Comments, audio notes, pictures and geolocation can be added to the scan which provides an intuitive base for quick and detailed reporting to the client.

Purchasing Options

There are two options for GP8000 concrete scanner a Basic and aPro system.

Either option includes a PCTE training session, 2 years of Proceq warranty, including local support from PCTE as Proceq´s Australian service centre, if needed and a direct PCTE contact for all support and training requirements.

Accessories

These are the items included with the Proceq GP8000 concrete scanner.

These are the additional accessories which are currently available for an added cost.
